AGRIRATON – Control Panel

AGRIRATON - Control Panel AGRIRATON - Control Panel AGRIRATON - Control Panel AGRIRATON - Control Panel AGRIRATON - Control Panel AGRIRATON - Control Panel AGRIRATON - Control Panel AGRIRATON - Control Panel AGRIRATON - Control Panel



Overview

Are you ready to enter Agriculture 4.0?

The new generation of AGRIRATION 4.0 control panel takes you into a new management mode of your farm!

This is not just about automating your feeding equipments! You will have access to all the necessary information to manage your groups, receipes, stocks of ingredients, equipment maintenance… etc…

It is therefore the ideal solution to optimize the feeding of your animals. Your farm at your fingertips!

  • Access to all your data, at any time, via the Wifi network

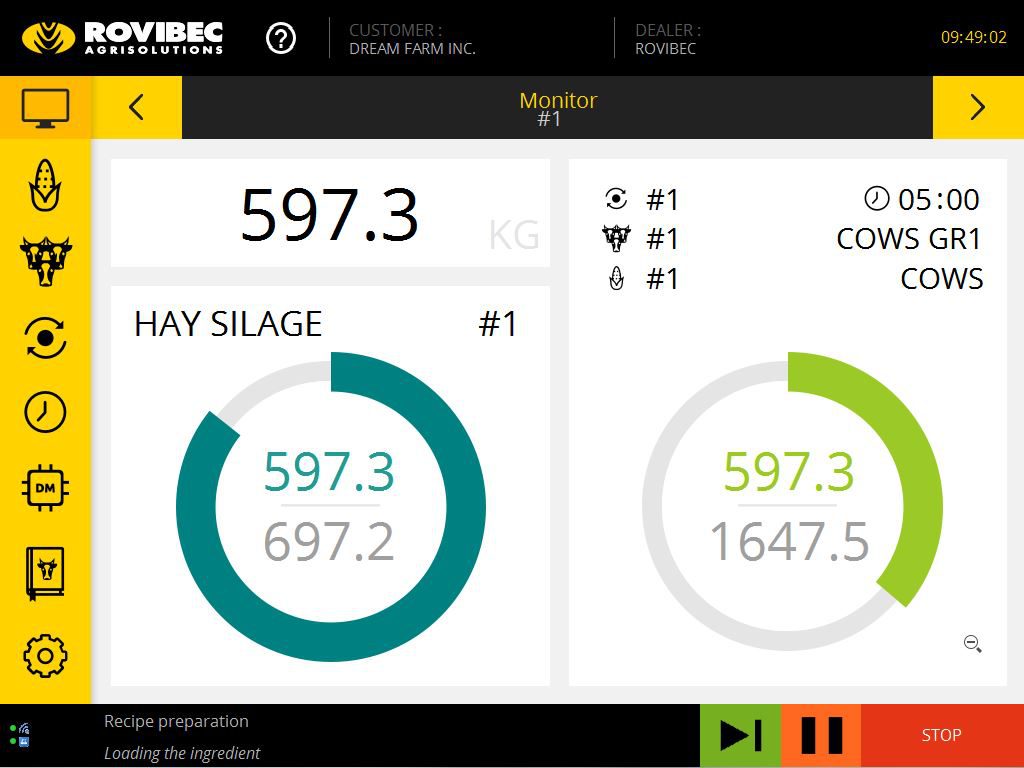

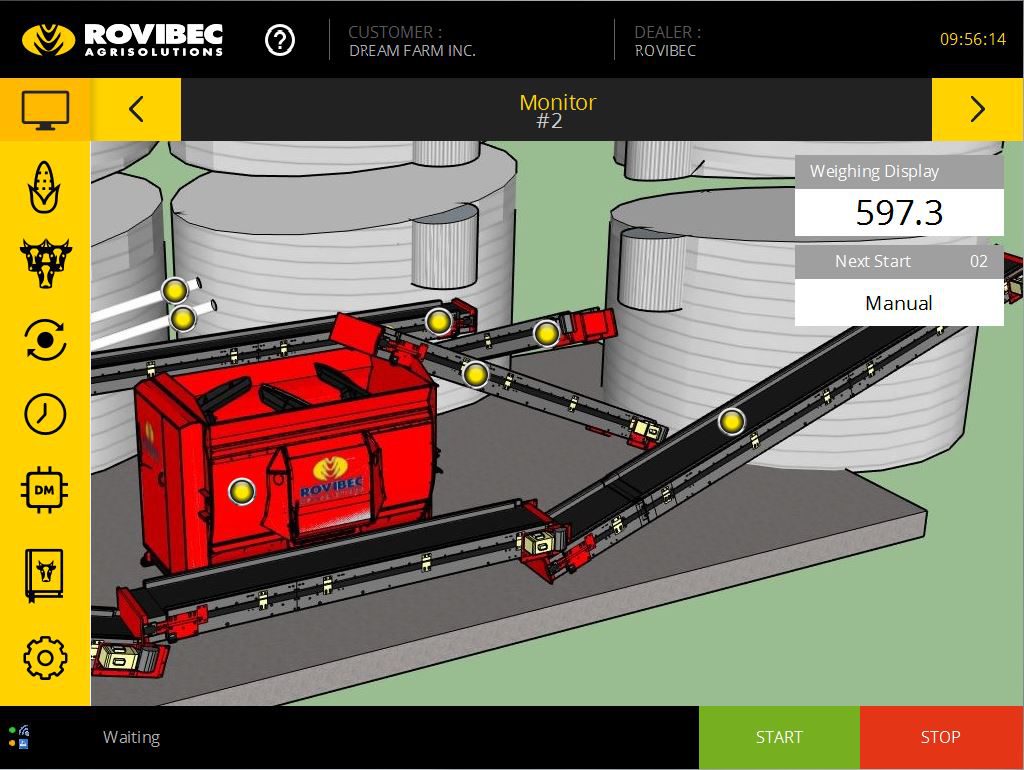

  • Remote monitoring, in real time, via a clear and complete display of activities
  • Fluid and intuitiv navigation on a 15’TFT touch screen, a completely redesigned menu
  • Simplified ingredient management and dry matter management

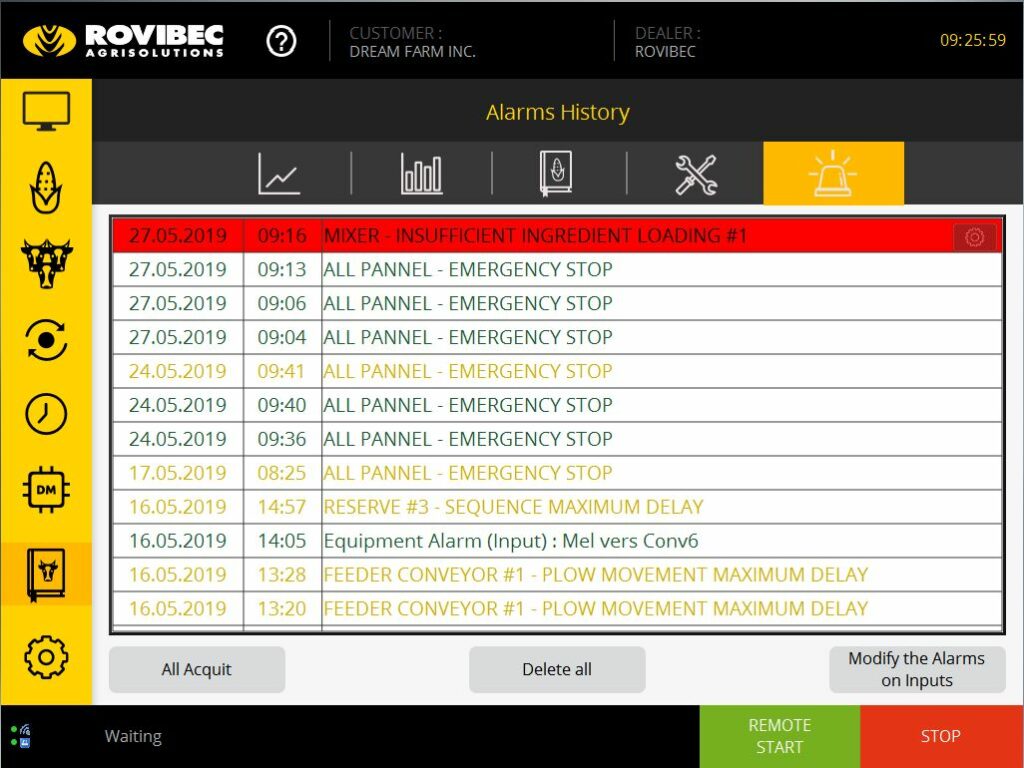

  • Complete history of recipes and alarm provided

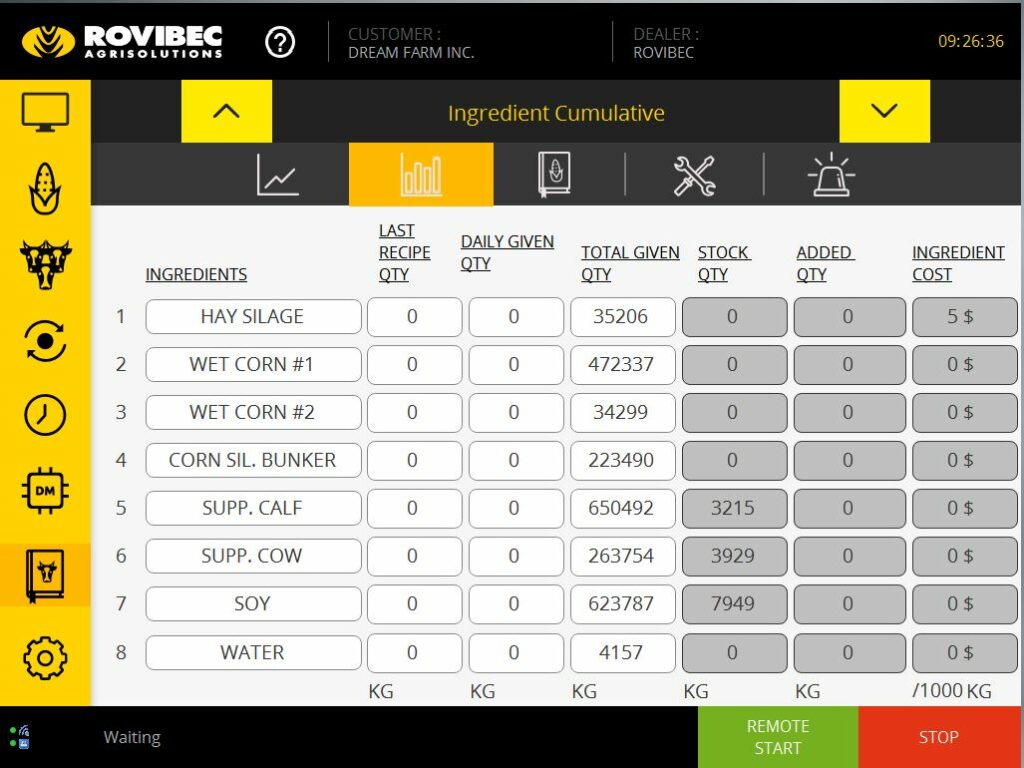

  • Inventory tracking
  • Operating time of equipments
  • Possibility to connect up to 5 cameras

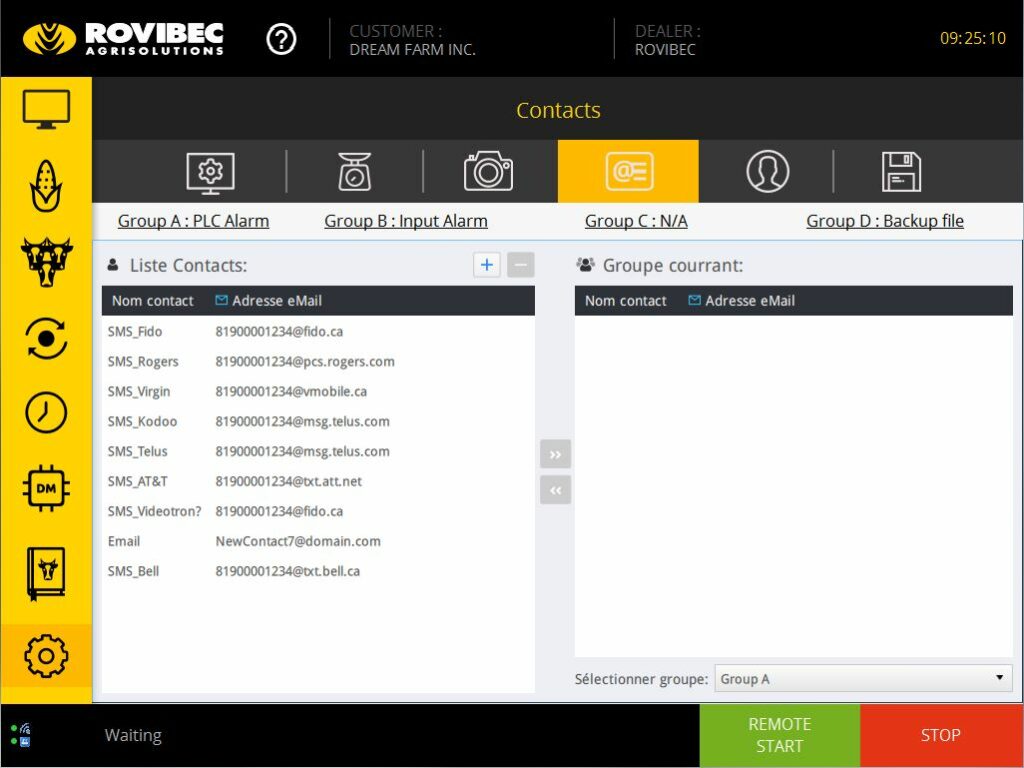

  • Easy management of contact groups in case of emergency: contact by email or text messages
  • Remote data sharing, with a nutritionist, a technician or any other specialist
  • Meets north-american and european certification standards (CSA, UL, CE)
  • Available in 240V-1PH ou 380V/600V-3PH

Technical Specs

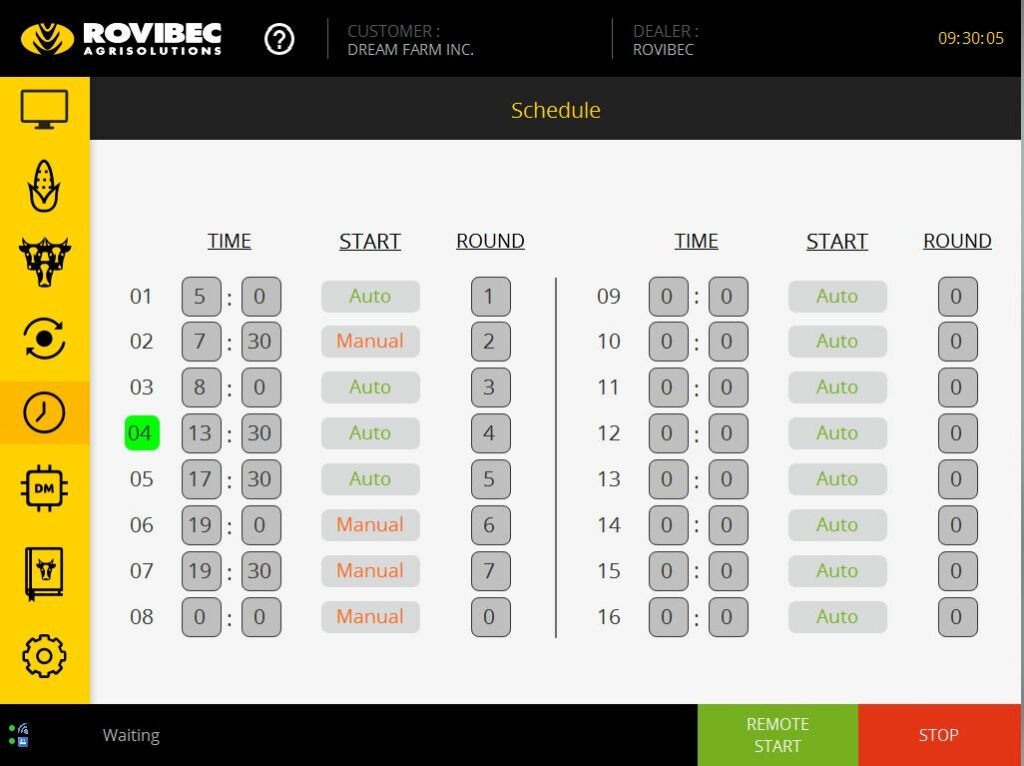

Sequences and departures

    10 different sequences available, up to 40 actions by sequence
    16 departures possible by sequence

Possible groups

up to 20 groups of animals

Possible ingredients

32 ingredients

Potential recipes

    up to 24 recipes
    Possibility to personnalize recipe names
    Dry matter and drop tail management

Compatibility

Wi-Fi via any WEB browser of any device (Tablet, computer, smart phone) and dedicated application via EasyAccess

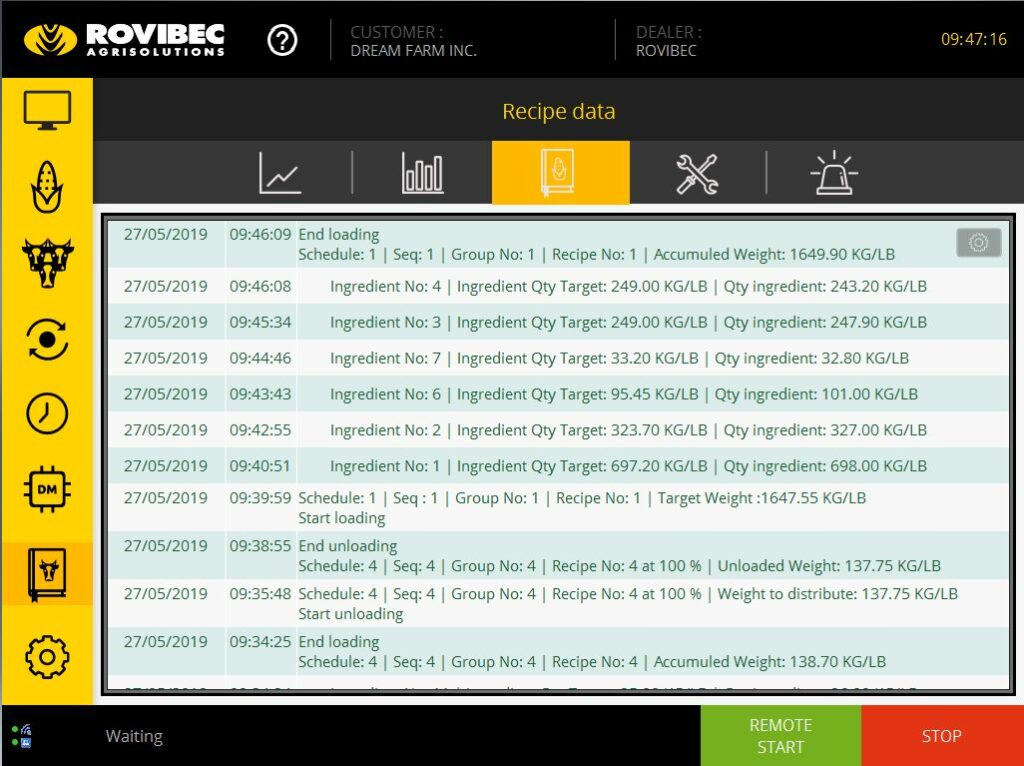

Recipe history

    Keep the history of the latest 10 recipes
    Compile alarms data
    Hold operating times of equipments

Inventory

Keeps inventory of each ingredient and calculate stocks

Screen

15" TFT colour touch screen

Certifications

CSA, UL, CE
