GreenBot, the smart bedding robot

GreenBot, the smart bedding robot GreenBot, the smart bedding robot GreenBot, the smart bedding robot GreenBot, the smart bedding robot GreenBot, the smart bedding robot GreenBot, the smart bedding robot



Overview

Automatisation is not only for feeding.

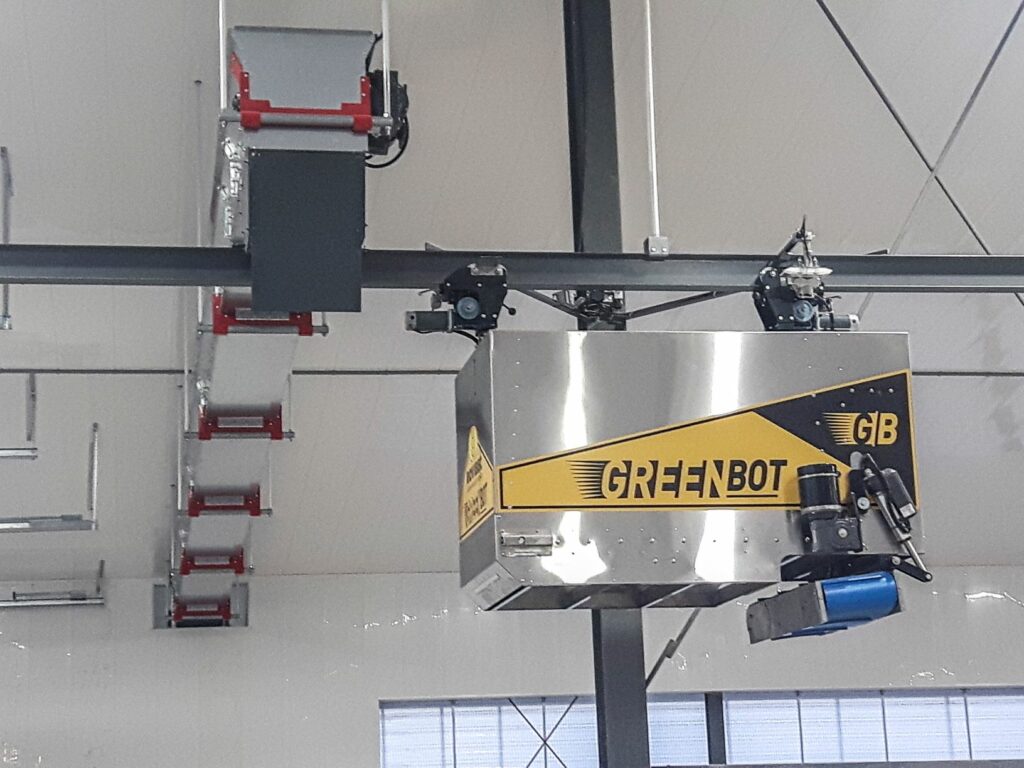

The GreenBot is a smart bedding robot. A distributing robot made to be simple of use, to last longer and to spread litter in your stalls.

Without stress, your animals are more comfortable.

The GreenBot will participate to your animals’ comfort and will relieve you from the tedious taks of litter spreading.

Perfectly aunonomous: the GreenBot will allow you to completely automate the management of the litter by combining it with the GreenBox.

Ideal for use with recycled litter or ripe. The GreenBot also works with a ripe/straw/lime mix.*

Its strong points?

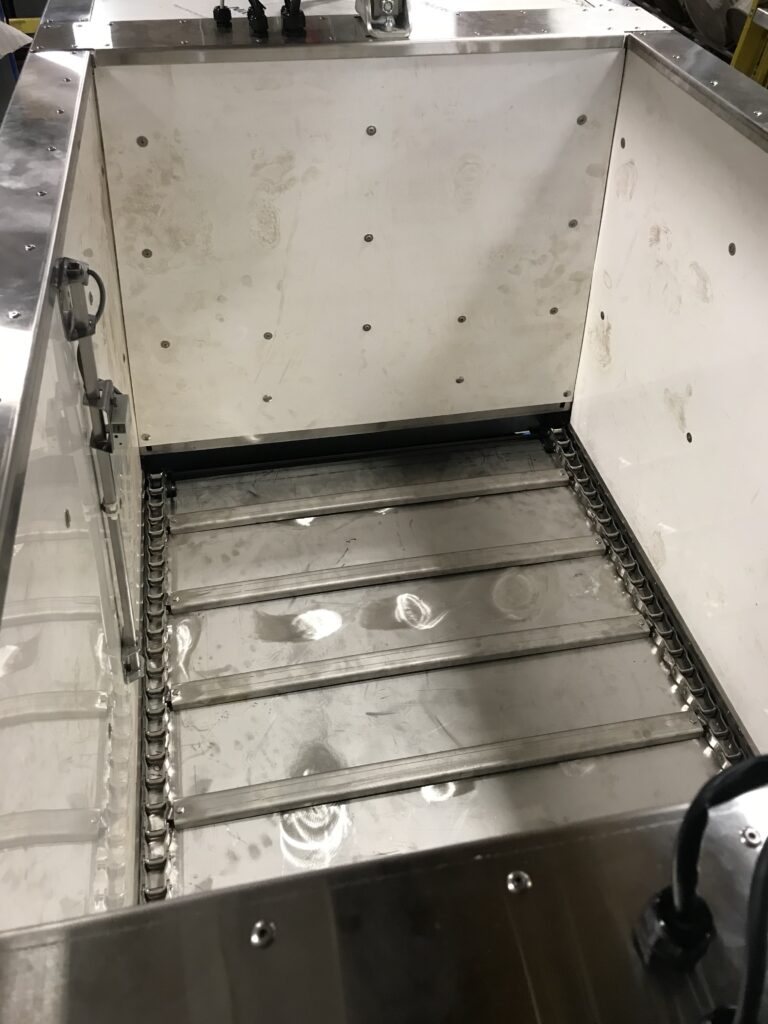

  • built in stainless steel: structure, apron and chain
  • Nylon liner inside the tub
  • Battery powered

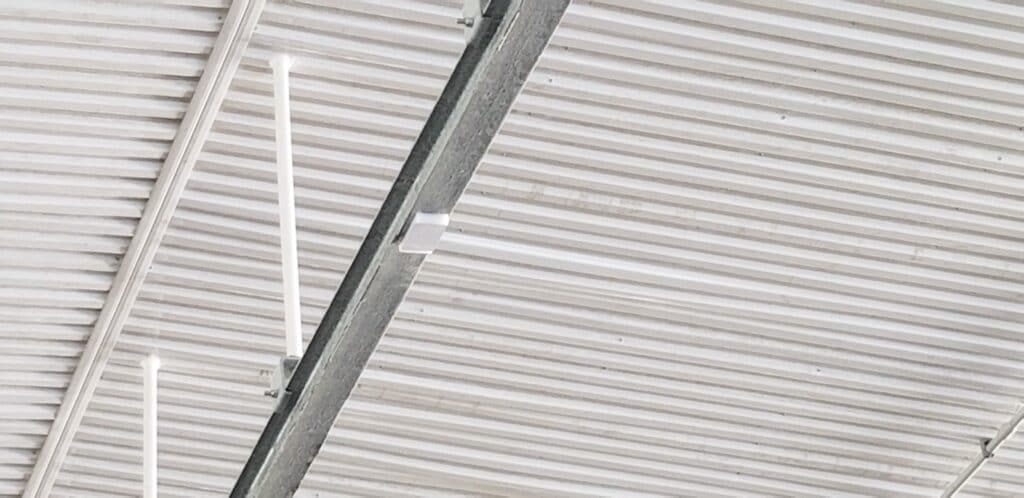

  • Positioning by coded keys

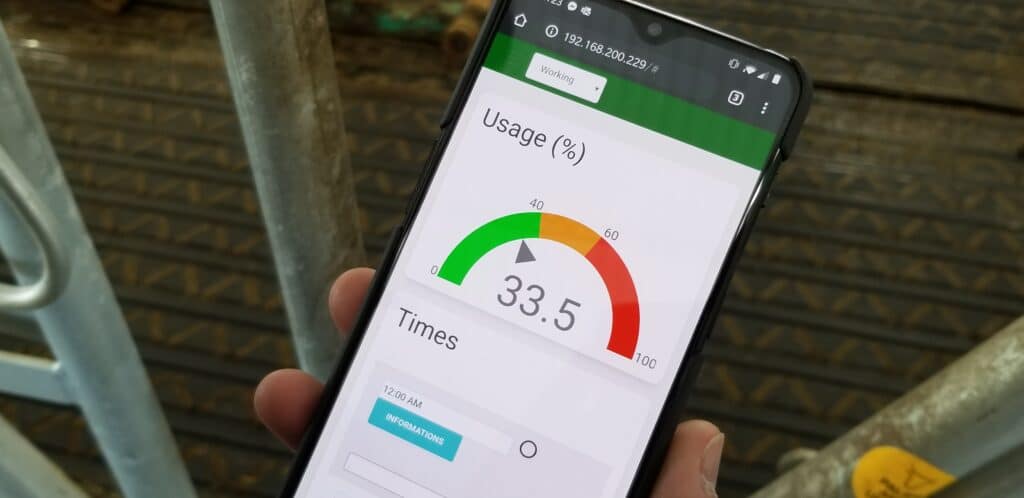

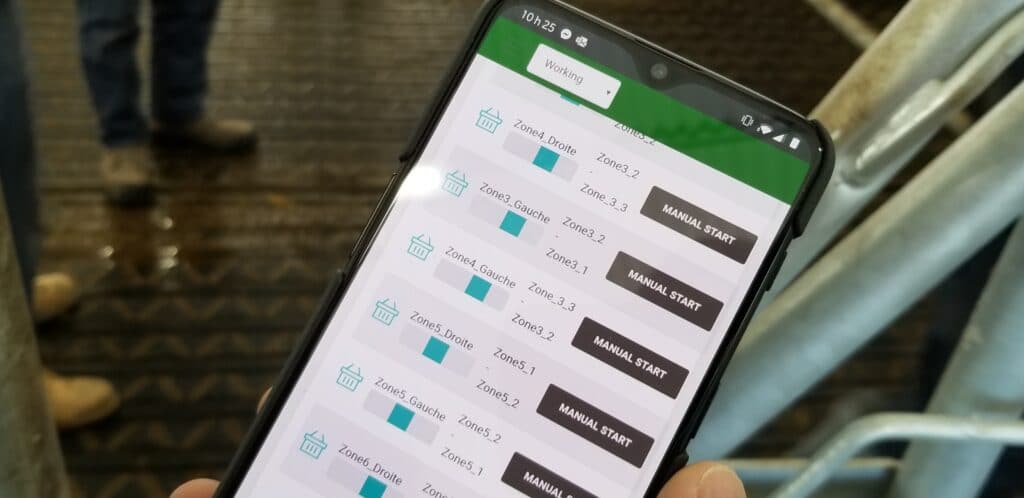

  • Easy programming and management via a web interface accessible by computer or mobile
  • Pivotable urethane belt conveyor
  • 2 years warranty (parts and labour) as an option



*Recommended maximum fiber length 2″ (5 cm)

Technical Drawings

GreenBot - dimensions (side view)GreenBot - dimensions (front)

Technical Specs

Capacity

30 pi3 (0,85 m3)

Max Payload

350 Kg (771 Lbs)

Power

2 AGM type batteries 12 VDC - 110 Amp deep cycle

Recharge

Automated via a 24 VDC charging station - 15 Amp 120/240 VAC

Track

I-Beam S4 or S6 track

Movement speed

Variable speed up to 1 m/s

Discharge

Right or left discharge, variable speed and pivotable urethane belt conveyor

Circuit

Left/right branch circuit, zone management

Empty Weight

500 Kg (1000 Lbs)
