GreenBox – a new generation HD reserve

GreenBox - a new generation HD reserve GreenBox - a new generation HD reserve GreenBox - a new generation HD reserve GreenBox - a new generation HD reserve GreenBox - a new generation HD reserve GreenBox - a new generation HD reserve GreenBox - a new generation HD reserve



Overview

The GreenBox: a new generation storage, developped for intensive and long-lasting use.

Its application? Ideal as a storage in an automated recycled bedding system.

The bedding management is often manual. Why not gain time and efficiency by automating?

This is what the GreenBox is made for!

Thanks to its unique caracteristics, the GreenBox storage for (recycled) bedding management will stock AND bring your litter to your distribution system. Whatever your current system is, the GreenBox is compatible with several distribution systems: cart, conveyors and robot.

Think comfort!

You animal comfort requires a dry and sufficiant bedding. Automation of the distribution is therefore an ideal solution to assist your efforts.

No more waste of time! Less manipulation, no more movement of stocks! Your time is precious, use it for what really matters!

Homogeneity!

Like food, an important aspect of bedding management is consistency: year-round consistency required! What could be more consistent than a litter carried and spread automatically?

With its mooving floor, the GreenBox bedding storage smoothly bring the older stock to the head. The beaters are specially designed to make the flow uniform to the discharge conveyor.

In brief, the GreenBox advantages.

  • its solid structure
  • its head with 4 beaters

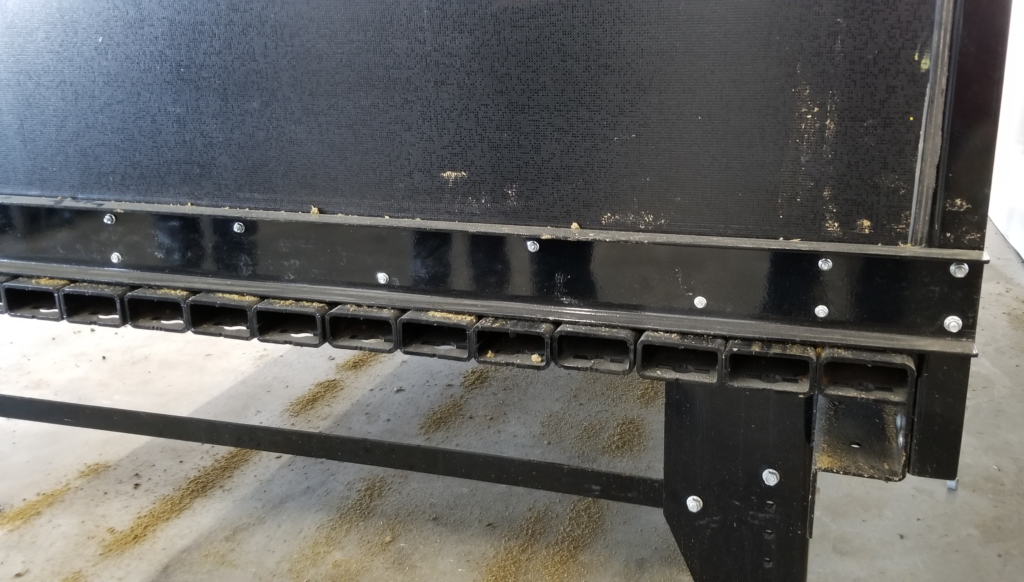

  • its mooving floor with slats

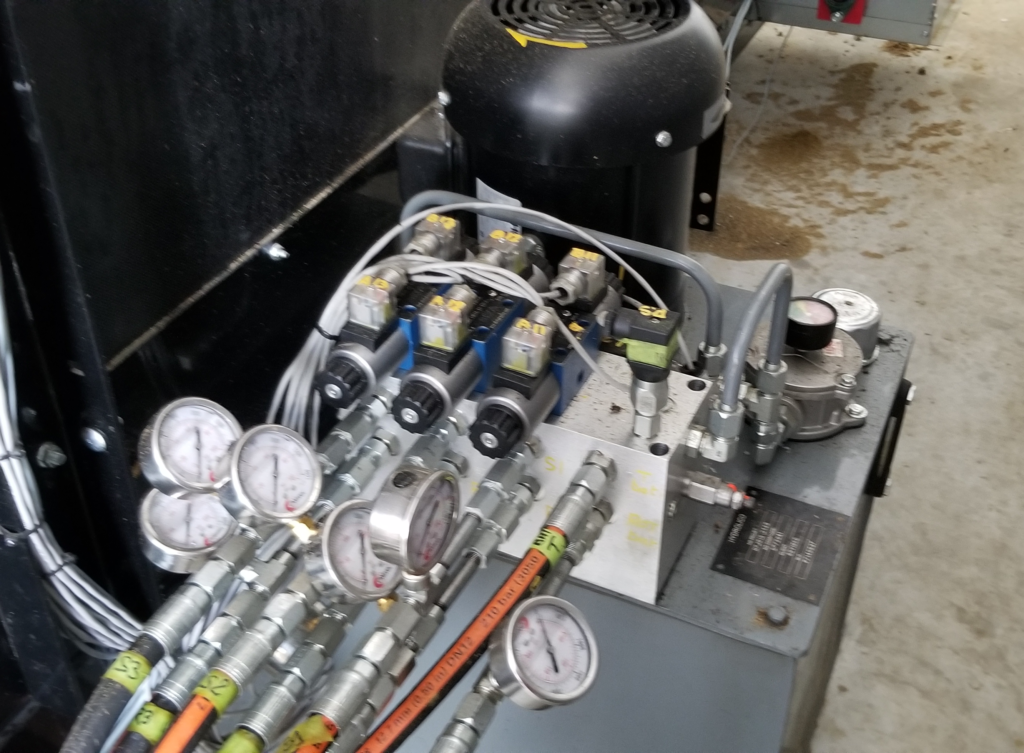

  • its simple and efficient hydraulic system

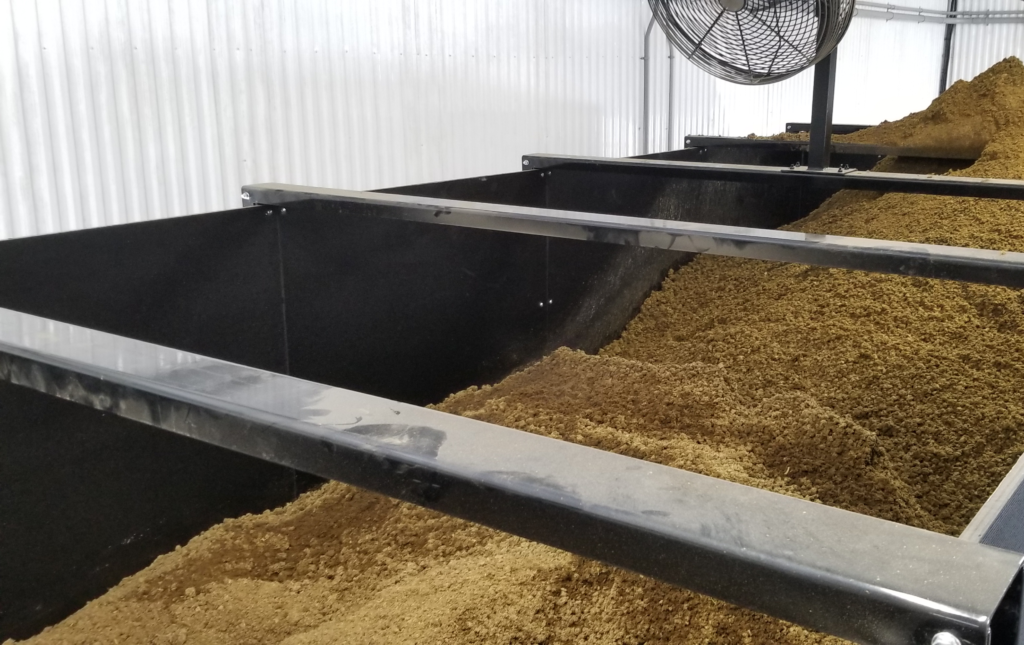

  • its load capacity from 650 cu.ft to 1950 cu.ft

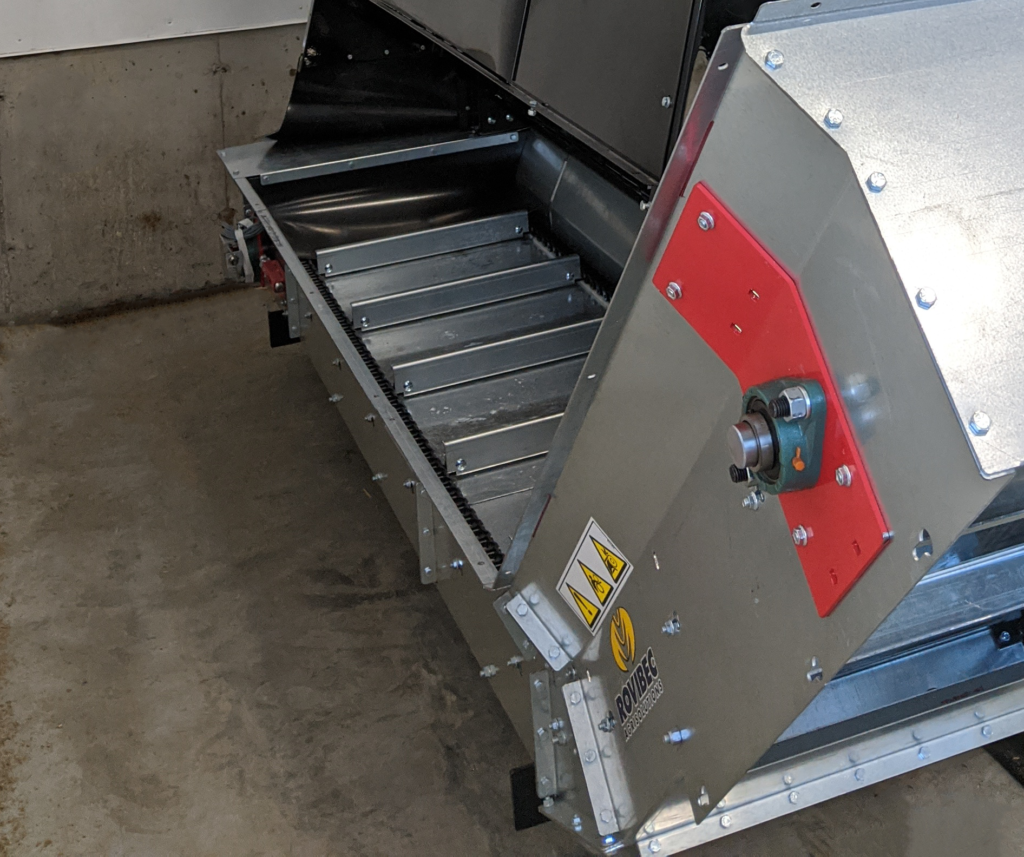

  • its discharge chain conveyor, with a stainless steel chain
  • its compatibility with the Rovibec distribution system: Rovicar, conveyor, Agriration 4.0 or even the GreenBot – a connected bedding robot

Technical Drawings

Greenbox - head viewGreenbox - side view

Technical Specs

Motorization

Hydraulic unit with 5HP motor, 240v 1 phase or 600v 3 phases

Structure

    Powder coated steel, walls in
    Adjustable legs

Capacity

Capacity from 650 cu.ft, 1300 cu.ft or 1950 cu.ft (18,4m3, 36,8m3 ou 55,2m3)

Dimensions (lXH)

    Sections of 12', 24' or 36' de long (3,6m, 7,3m or 10,9m)
    7' X 8' (2,13m X 2,44m)

Inclusions

    6' discharge conveyor (1,8m) 3HP 15:1, stainless steel chain
    Control panel, 240v or 600v

Options

2 years warranty - parts and labor

Weight

    650 cu.ft capacity: 10 300 Lbs (4 672Kg)
    1300 cu.ft capacity: 14 600 Lbs (6 623Kg)
    1950 cu.ft capacity: 18 900 Lbs (8 573Kg)
