Strawmaster – round bale distributing cart

Strawmaster - round bale distributing cart Strawmaster - round bale distributing cart Strawmaster - round bale distributing cart Strawmaster - round bale distributing cart Strawmaster - round bale distributing cart Strawmaster - round bale distributing cart Strawmaster - round bale distributing cart



Overview

Manage your bedding? Easy with the Strawmaster!

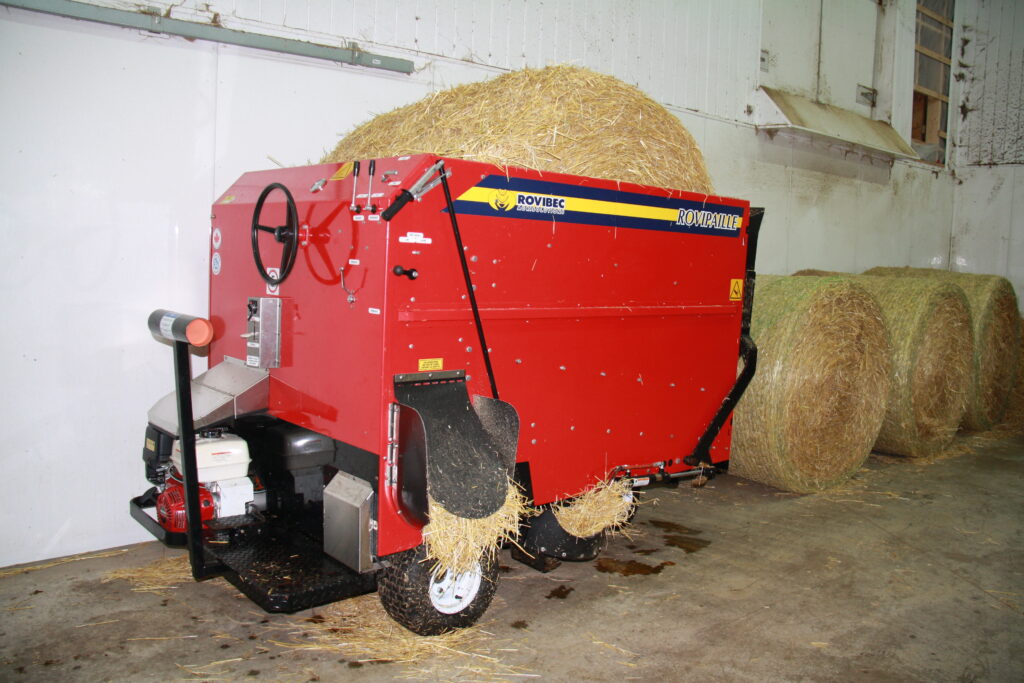

The Strawmaster is a motorized cart, with a tub designed especially to load a rotocut round bale very easily thanks to its hydraulic front loader.

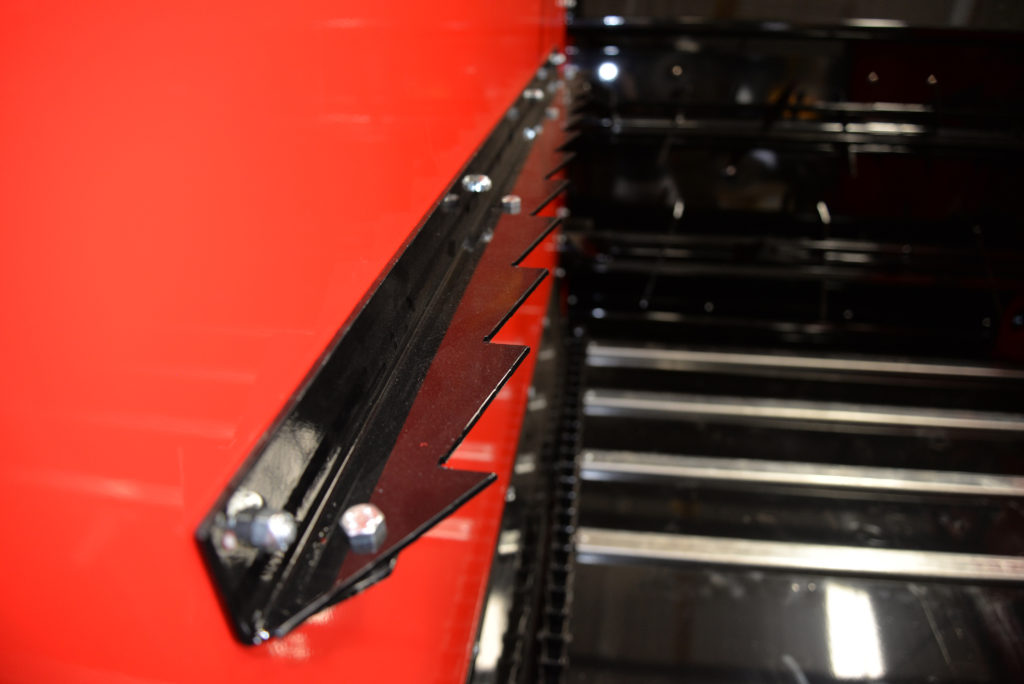

Bale retainers are used to help better bale unrolling.

Quick and efficient, it is the perfect machine to mulch in no time!

  • Hydraulic power steering
  • Front and back flat-free wheels
  • Nylon liner a the discharging auger

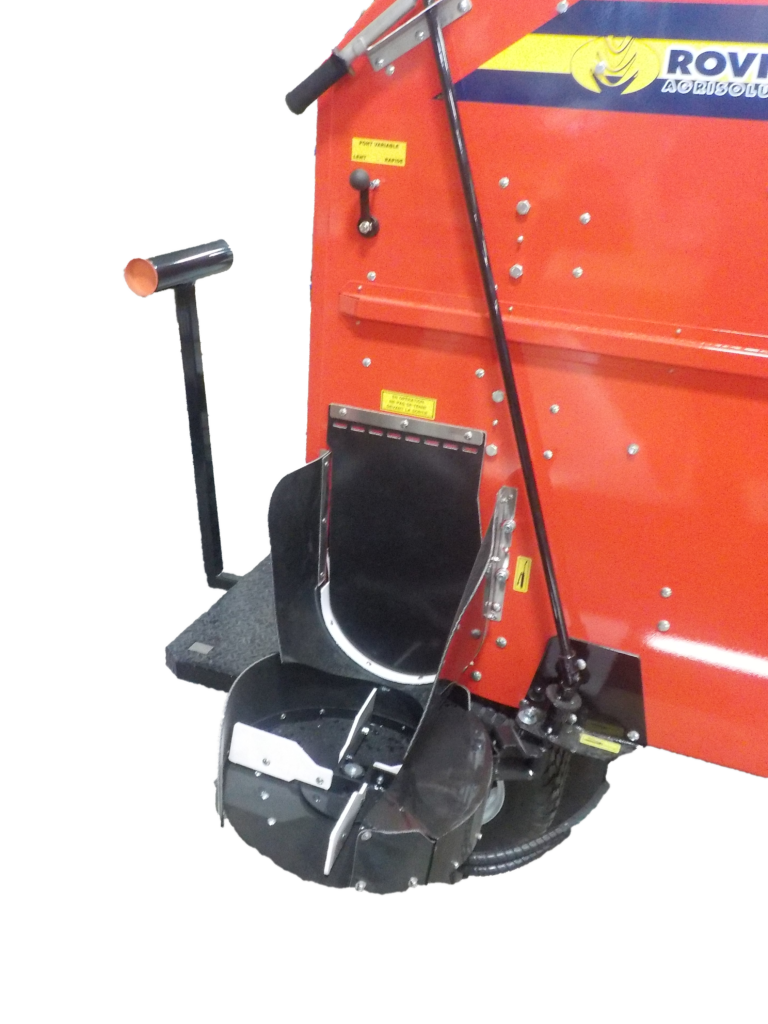

  • 18” (457 mm) lateral spreader

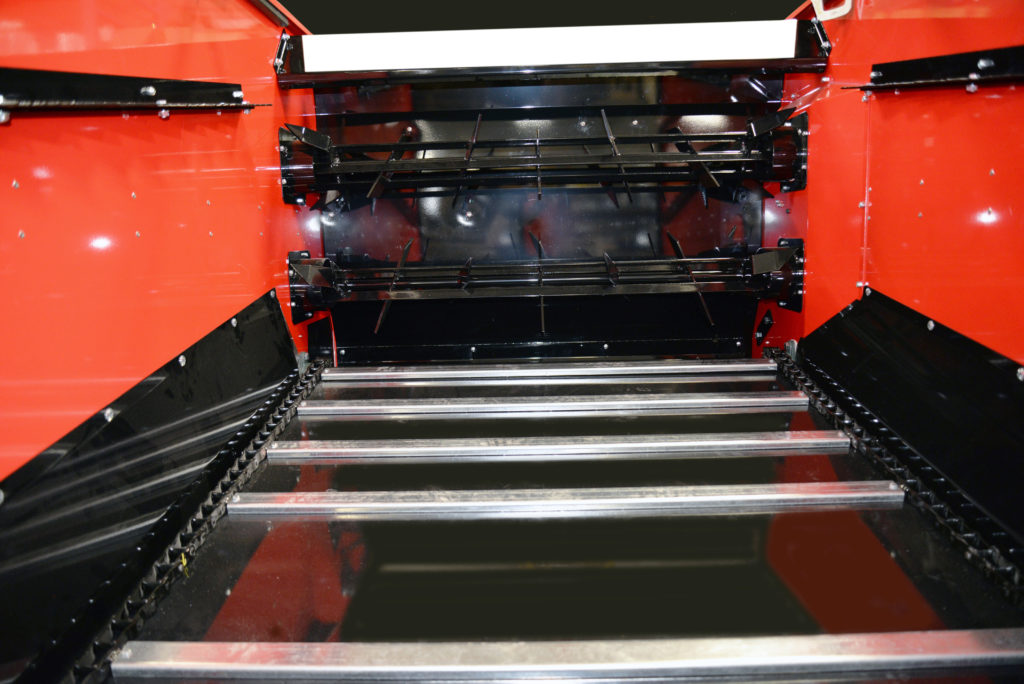

  • Mechanical drive, variable speed apron
  • 2 years warranty (parts and labour) as an option

Technical Drawings

Dimensions - lateral viewDimensions - back view

Technical Specs

Capacity

101.5 pi3 (2.87m3) tub capacity - approximately 840 Kg (1851 Lbs)

Motorization

13 HP HONDA petrol engine, electric starter

Direction

Hydraulic power steering

Front loader

Hydraulic front loader

Apron

Mechanical drive, variable speed control

Wheels

Double front wheels, flat free wheels (front and back)

Lateral spreader

18" (45,7 cm) retractable lateral spreader

Frame

Steel frame

Dimensions (L X l x H)

136’’ X 76’’5/8 X 68’’ (345 cm X 194.7 cm X 172.6 cm)

Weight

2292 Lbs (1040 Kg)
